ReGuard
Multi-role 3D radar for the detection and tracking of ground and low-flying targets.
About ReGuard

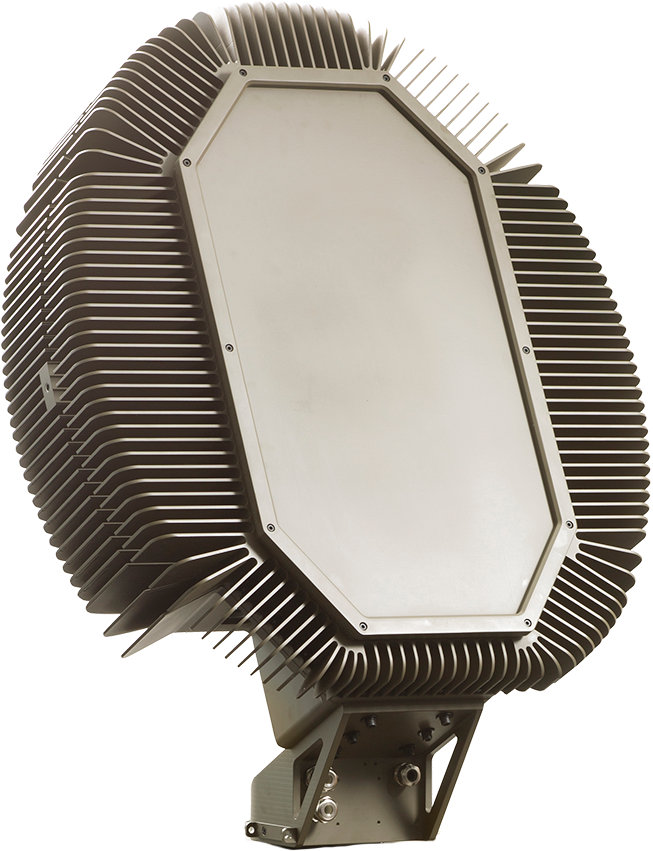

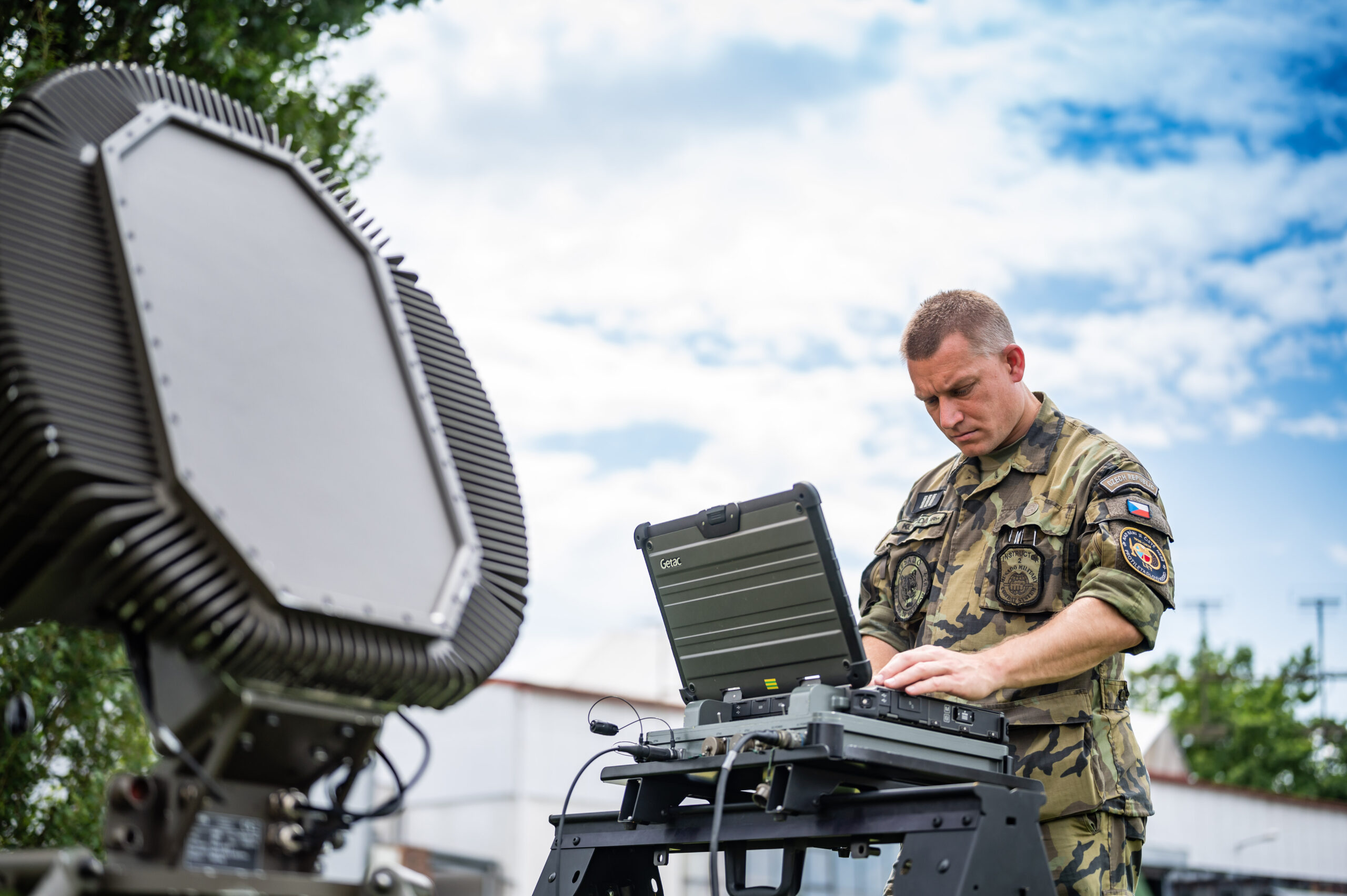

ReGuard radar is a multi-role 3D radar which simultaneously detects and tracks ground targets and slow, low-flying targets with a small radar cross section (LSS). ReGuard monitors the area by utilizing electronic beam steering and mechanical rotation of the radar head.
Instrumental range 18 km
Altitude coverage 3 km for LSS targets
Deployment time under 10 min
ReGuard - about 3D radar
ReGuard - flying drone detection
ReGuard - classification of targets
ReGuard - virtual tour
Technology
- 3D AESA with steering in both elevation and azimuth
- Rapid area monitoring using multiple received beams
- Full solid-state technology
- Monopulse processing in both azimuth and elevation for accurate evaluation of coordinates
- Advanced signal and data processing for clutter suppression (including birds and cars)
- Networking capability (ASTERIX output, fully Sapient 7.0 compatible, remote control, etc.)
- Built-in test equipment for automatic systém diagnostics
- 24/7 Operation capability
Key features
- Multi-role utilization – broad variety of detectable objects, simultaneous tracking of ground and air targets
- Compact size and low weight
- Passive cooling without fans
- Simple maintenance
- Long term support during the product life cycle

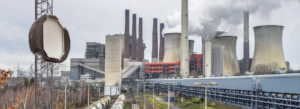

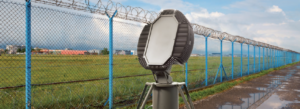

- Easy integration on masts, rooftops, poles, stands, vehicles
Operational modes
ReGuard operates in sector or rotational mode. Each mode utilizes different method of scanning the area in azimuth. When the radar scans in sector mode, its beam is steered only electronically both in azimuth and elevation. While scanning rotationally the radar sensor head revolves on a turntable and the electronic steering of the beam is primarily used in elevation. Steering in azimuth provides rapid confirmation of detection when initiating track and enhances the quality of tracking while scanning (TWS). The ReGuard is configurable in each operational mode according to individual deployment requirements.
Configurations

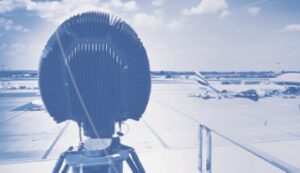

PORTABLE CONFIGURATION

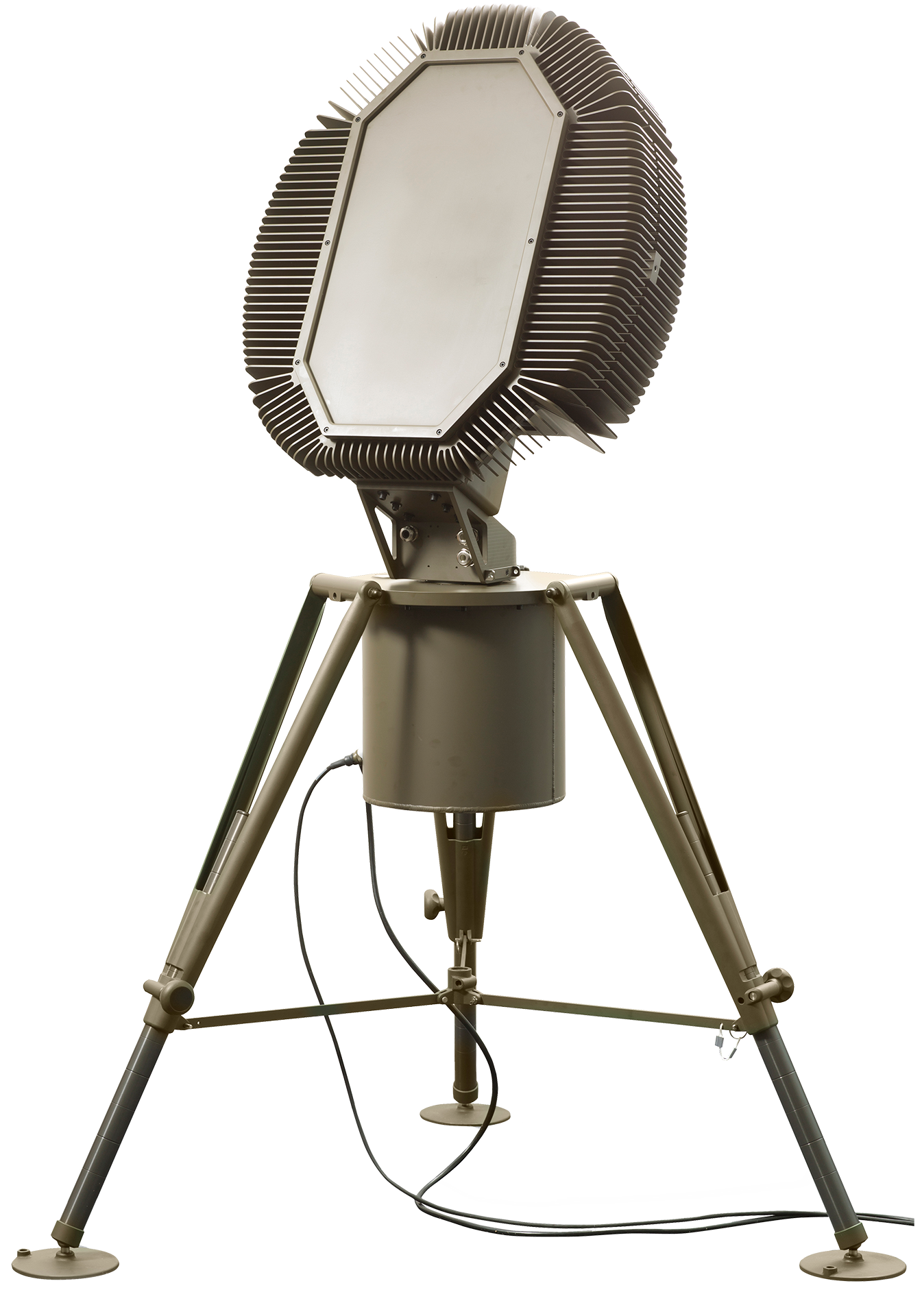

The radar head is mounted on a tripod making it convenient for temporary deployment. This configuration, which allows for an easy location change, is appropriate for the temporary securing of important geographical points or border control.

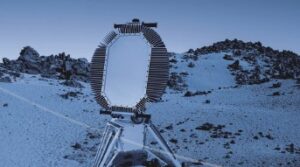

HOT CONFIGURATION
Hot climate version with adequate thermal protection. Special sand color for better reflection of sun radion. Increased radiator fins on back cover of radar head and on radar stand. Redesigned sunshield for optimal airflow around head unit.

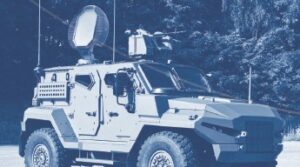

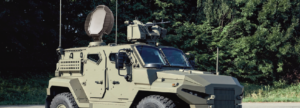

MOBILE CONFIGURATION
A highly mobile configuration since the radar head can be fitted on a vehicle or any other customer-designed platform. Facilitates the rapid patrolling of designated areas like large gatherings, concerts, VIP zones.
